Another successful implementation in the production of a metal structure. Our scope of work was design, manufacture and installation at the client’s site. Hartmann is a fast-growing company with many years of experience and we are very pleased to have been able to participate in the project.
Brodrene Hartmann A/S, a company based in Denmark, is the world’s leading manufacturer of moulded fibre egg packaging and machinery for moulded pulp production.

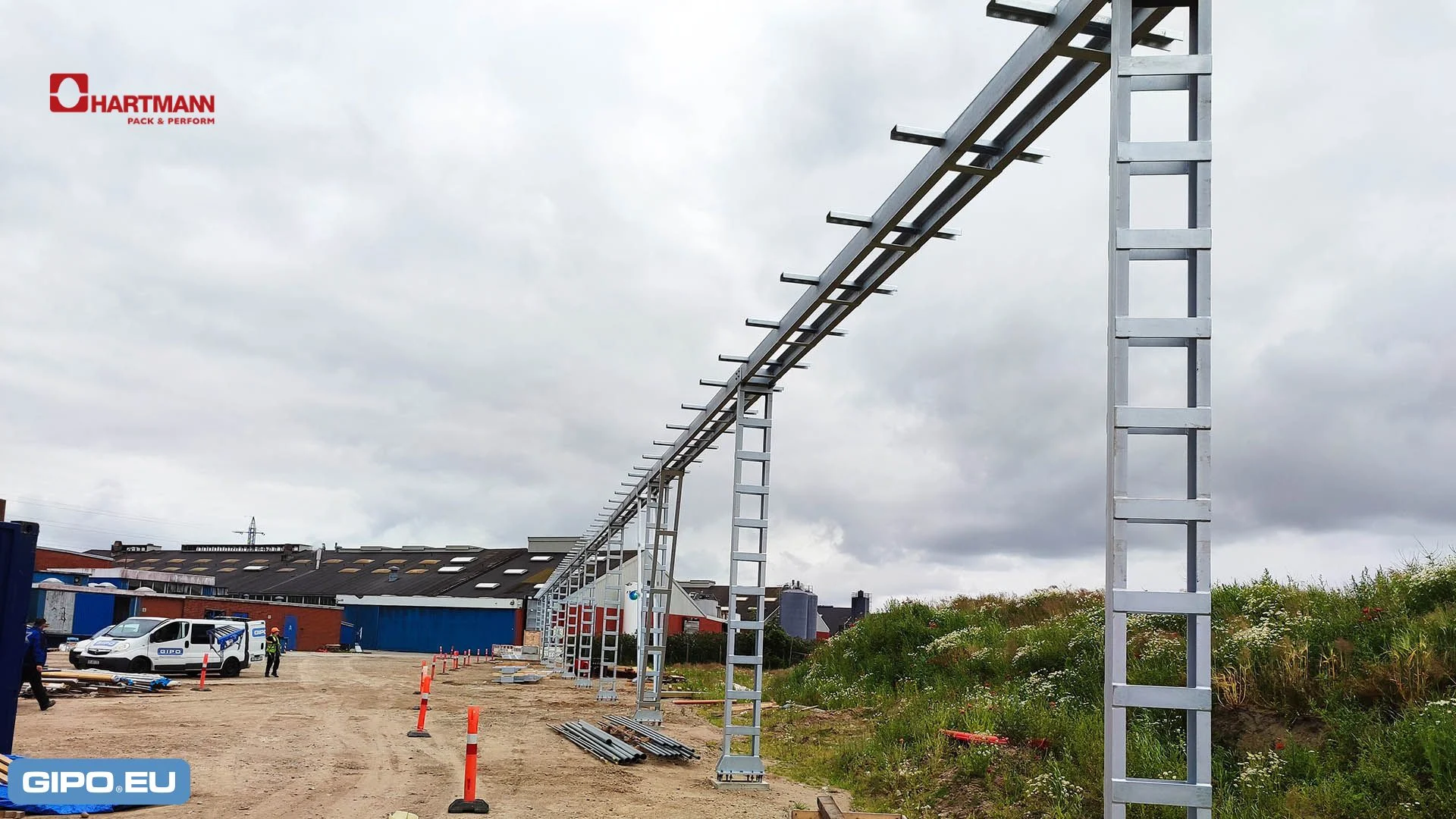

The pipe bridge improving the pulp transfer between two buildings. Our task was to design the structure, manufacture, delivery and installation.
Technical description:
Structure length: 130.0 [m]
Structure height: 5.5 [m]
Maximum span of a single section: 8,0 [m]
CE marking: EN 1090-1
Construction, design, execution, assembly: EN 1090-2
Execution class: EXC-2 according to EN 1090-2
Corrosion protection: HDG hot-dip galvanisation to EN ISO 1461
Corrosion resistance class: C3 according to EN ISO 12944-2 oraz EN ISO 14713-1
We supervises production at every stage using advanced methods and measurement techniques. We use NDT methods to detect any defects or irregularities in critical components such as welds, castings and forged parts.
Our Quality Control Department employs cutting-edge methods and precision measurement techniques to oversee every stage of production. We adhere to stringent quality management systems, including ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, EN 3834-2, EN 1090-1, EN 1090-2 (EXC3), and EN 1090-3 (EXC3).
Each process is carried out in one single location. Gipo is a guarantee of reliability, efficient logistics and cooperation at the highest level of every stage of the project. Each process is carried out at Gipo, so we have full supervision of all processes; this shortens the time of the project implementation and allow us to offer competitive prices. At Gipo we have a staff of skilled designers and automation specialists. Many of our outsourcing orders are based on the client’s design, in which case the design is meticulously reviewed and consulted with the client. This is a very important process before putting the design into production. Through the use of advanced software and automated machinery, we offer unparalleled accuracy, efficiency and repeatability. Achieving perfection in metalworking requires a combination of technical expertise, meticulous planning and attention to detail.
PRODUCTION OF METAL PARTS, COMPONENTS AND STRUCTURES
Range of services in Gipo:
- CNC Cutting
- CNC Bending
- Turning / CNC Turning
- CNC Milling
- Welding
- Coating
- Spray painting
- Design
- Ce Marking
- Installation
