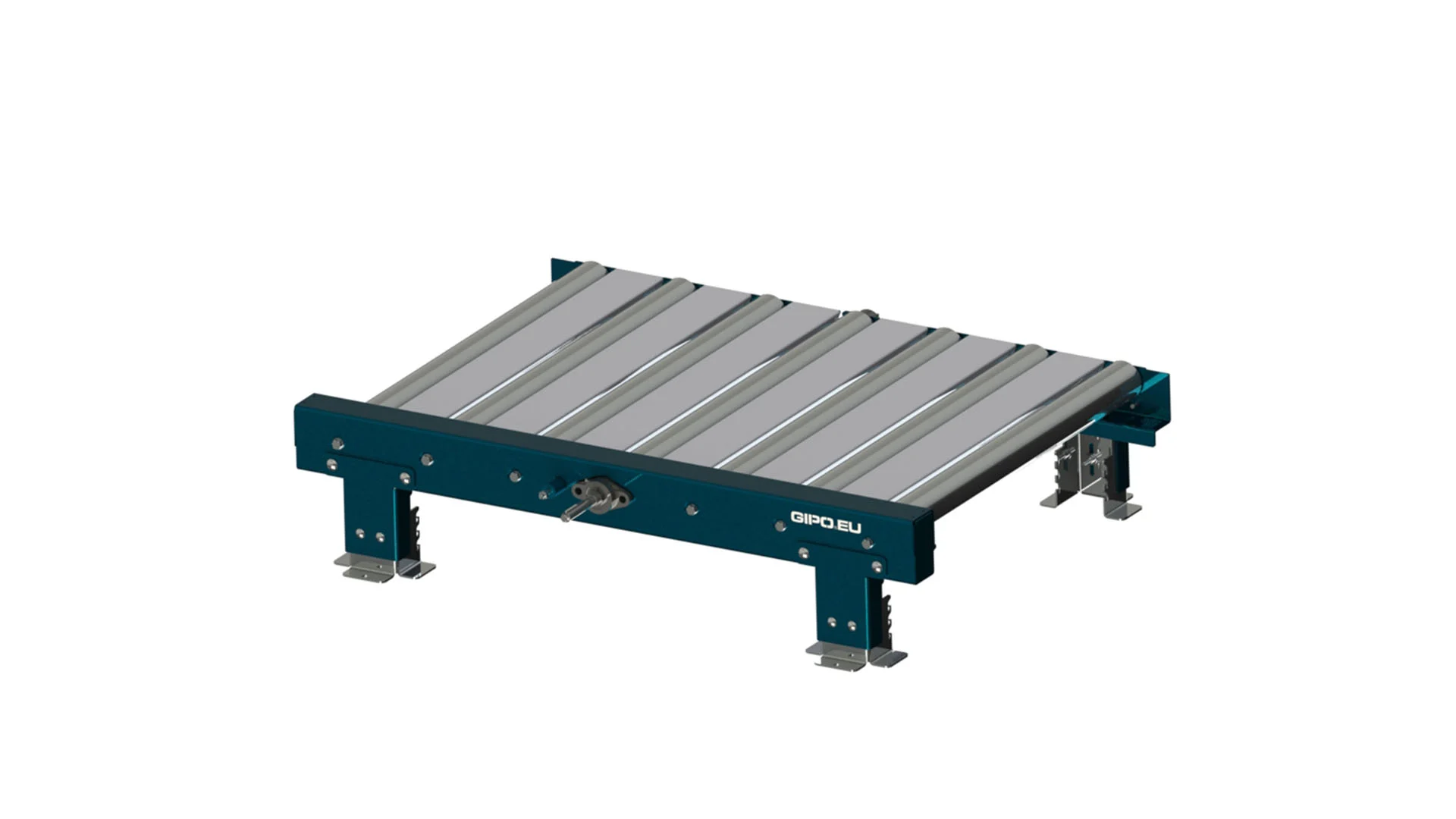

Roller conveyor H 300mm for one pallet place

All types of Gipo conveyors and transport systems are manufactured according to individual customer specifications.

Roller conveyors are the best solution for transporting pallets. The use of roller conveyors works well in factories, warehouses and logistics centers alike.

Gipo roller conveyors enable intensive and efficient flow of large quantities of goods. Accurate and precise control of the speed and route of pallets on roller conveyors minimizes the risk of errors and ensures proper distribution of goods.

Conveyors of our production can occur as stand-alone conveyors or be part of an entire transport line. They enable a smooth and continuous flow of pallets, speed up the process of production, transport, loading, distribution and, above all, increase productivity.

Sorting systems integrated with roller conveyors enable monitoring and collection of sorting data, facilitating management and optimization of the process.

Gipo’s roller conveyors are suitable for any type of pallet, they also have the ability to be set up in various configurations, and we can easily install additional conveyors and equipment when upgrading an existing conveyor line.

Powered roller conveyors are safe and speed up the loading and unloading of goods.
The simple and best solution for material handling

• SAFETY PLATES
  Safety and walking plates can easily be mounted without any screws.
• SENSOR MOUNTING
  Sensors and photocells can be mounted without any drilling and threading.
• CABLE TRAYS can be easy mounted without drilling and threading.

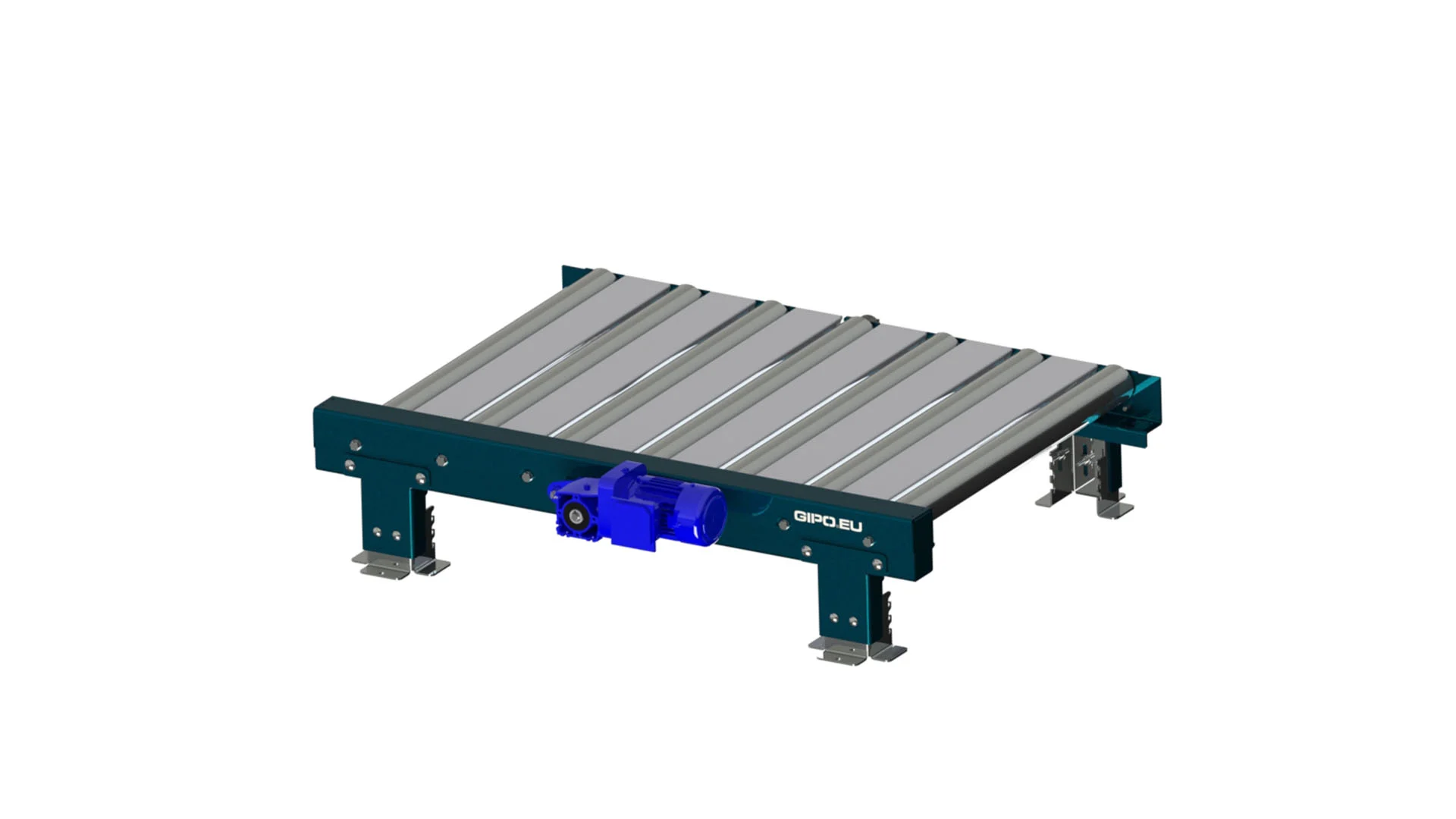

• MOTOR ON THE SIDE
  Direct drive on one of the rollers.
• MOTOR UNDER THE CONVEYOR
  Drive motor SEW placed under the conveyor.
• SERVICE
  After loosen of two screws and removing the cover, there is a full access for maintenance.
• EASY HEIGHT ADJUSTMENT

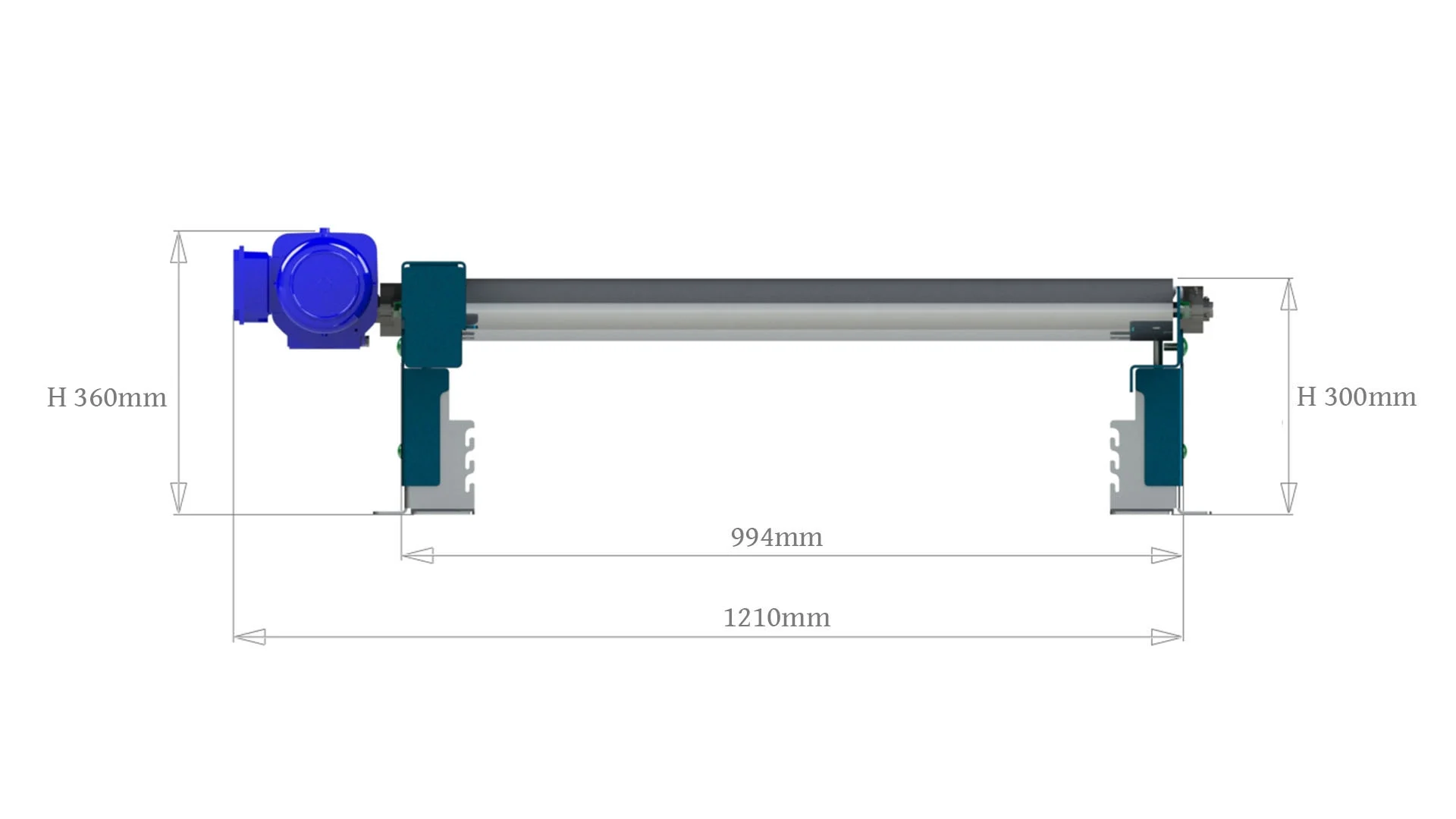

Product specifications

• Working width S=900 mm; Maximum working width S = 1200mm
• Minimum length L=1300 mm
• Height H=300 mm
• Spacing of rollers in axis CC=198 mm
• Roller diameter fi 80, galvanizing,
• Transmission chain 10 B1
• Speed of conveyor 10 m/min
• Motor power 0,37 kW
• Maximum pallet load 1500kg

Gipo roller conveyors are a flexible solution that can be adapted to your company’s changing needs.
Contact us for a customized price.
